Ground Screw Manufacturer — Engineered Solar & Structural Foundation Systems

Who We Are

Solar Earth Screw is an engineering-led ground screw manufacturer supplying foundation systems to solar developers, EPC contractors, construction companies, and distributors across Europe, North America, Asia-Pacific, and the Middle East. We do not simply fabricate steel — we manufacture certified structural components, with every production batch traceable through EN 10204 Type 3.1 mill test certificates confirming S355J2 steel grade compliance, EN ISO 1461 galvanizing test reports showing individual measurement results, and weld procedure qualification records for all structural welds. This documentation discipline is what makes Solar Earth Screw products acceptable to structural engineers of record, independent lenders’ engineers, and building permit authorities worldwide — and it is what distinguishes an engineering-grade ground screw from a commodity steel product.

Our team combines structural engineering expertise, manufacturing quality management, and solar project delivery experience — enabling us to support customers not just with product supply but with the technical documentation, specification guidance, and pre-production load testing support that complex solar foundation programmes require. Learn more about our engineering philosophy at About Solar Earth Screw → or explore our manufacturing capabilities at Factory Overview →

Ground Screw Foundation Systems

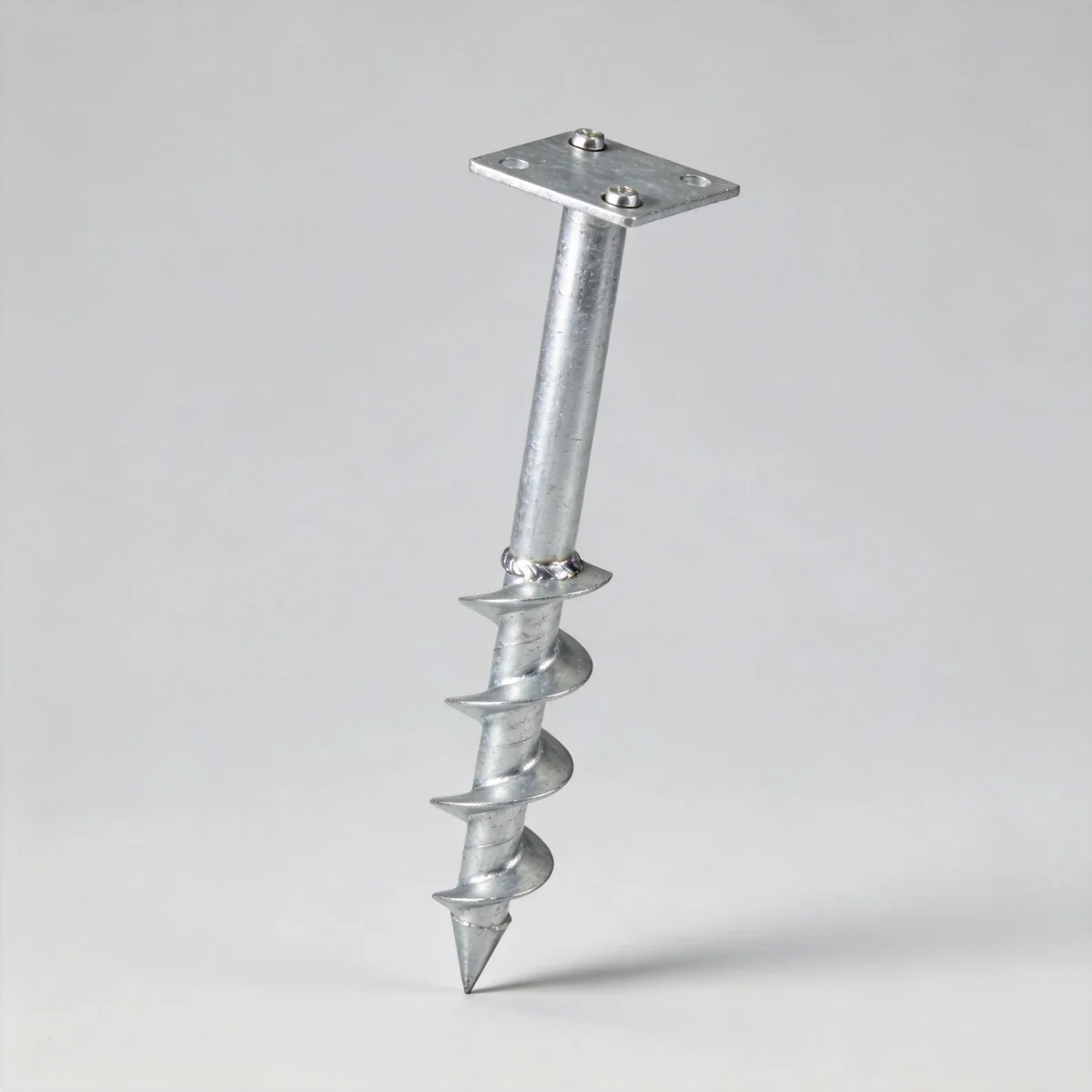

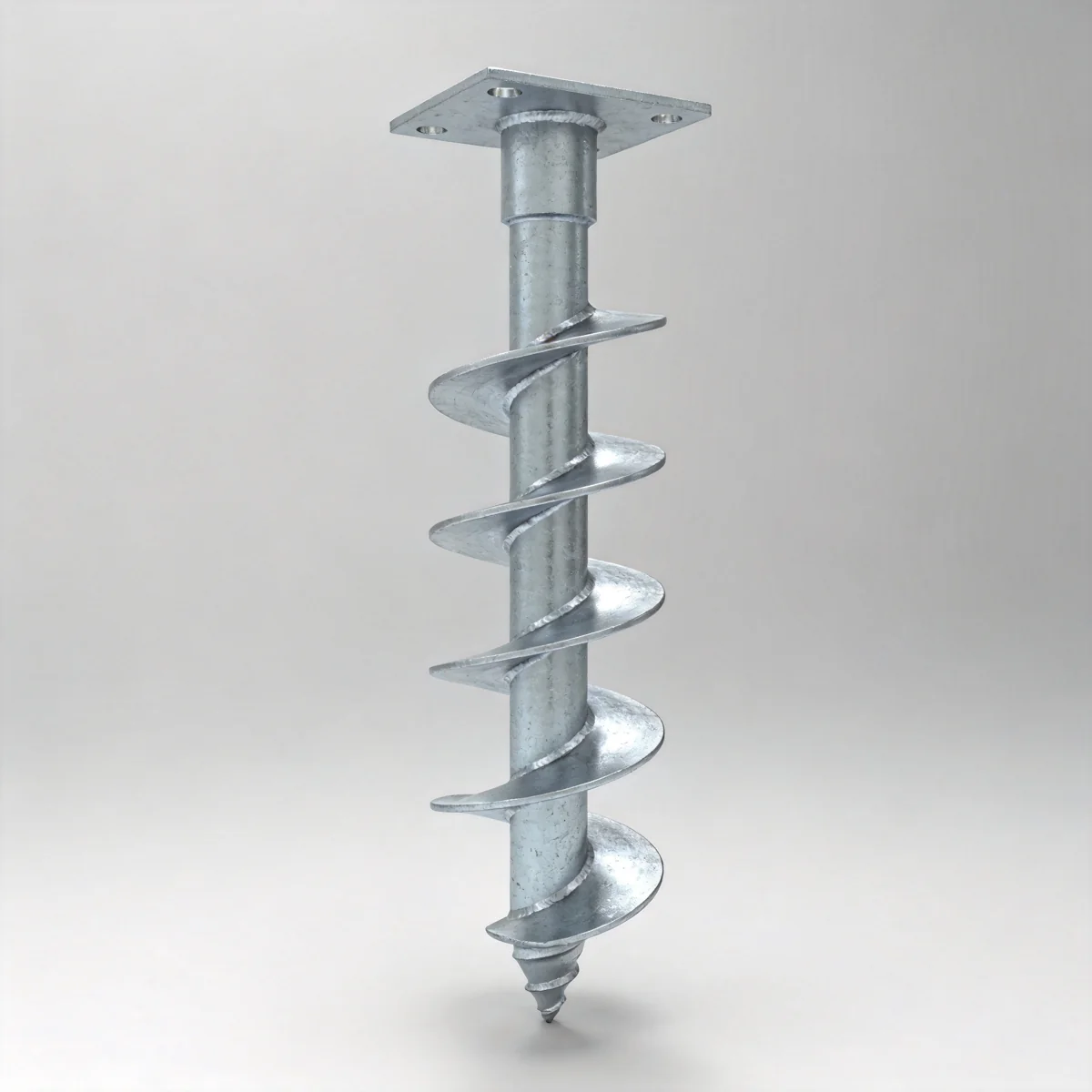

A ground screw — also called a helical pile or screw pile — is a hollow circular steel shaft with helical bearing plates that is installed by rotating it into undisturbed soil using a hydraulic torque head. Unlike poured concrete, a ground screw develops its structural capacity immediately upon installation, with no curing time and no excavated spoil — and provides real-time capacity verification through the empirical relationship between installation torque and bearing resistance. The Intel Market Research ground screw market analysis confirms that the global ground screw pile anchor market was valued at USD 812 million in 2024 and is projected to reach USD 1.19 billion by 2032, confirming that ground screw foundations are the fastest-growing foundation type in the solar and construction sectors globally. Solar Earth Screw manufactures foundation solutions across the full application spectrum:

• Solar Ground Mount Foundations → — Engineered helical pile foundations for residential and commercial solar PV ground-mount racking systems, compatible with all major racking system connection standards and supplied with full structural documentation

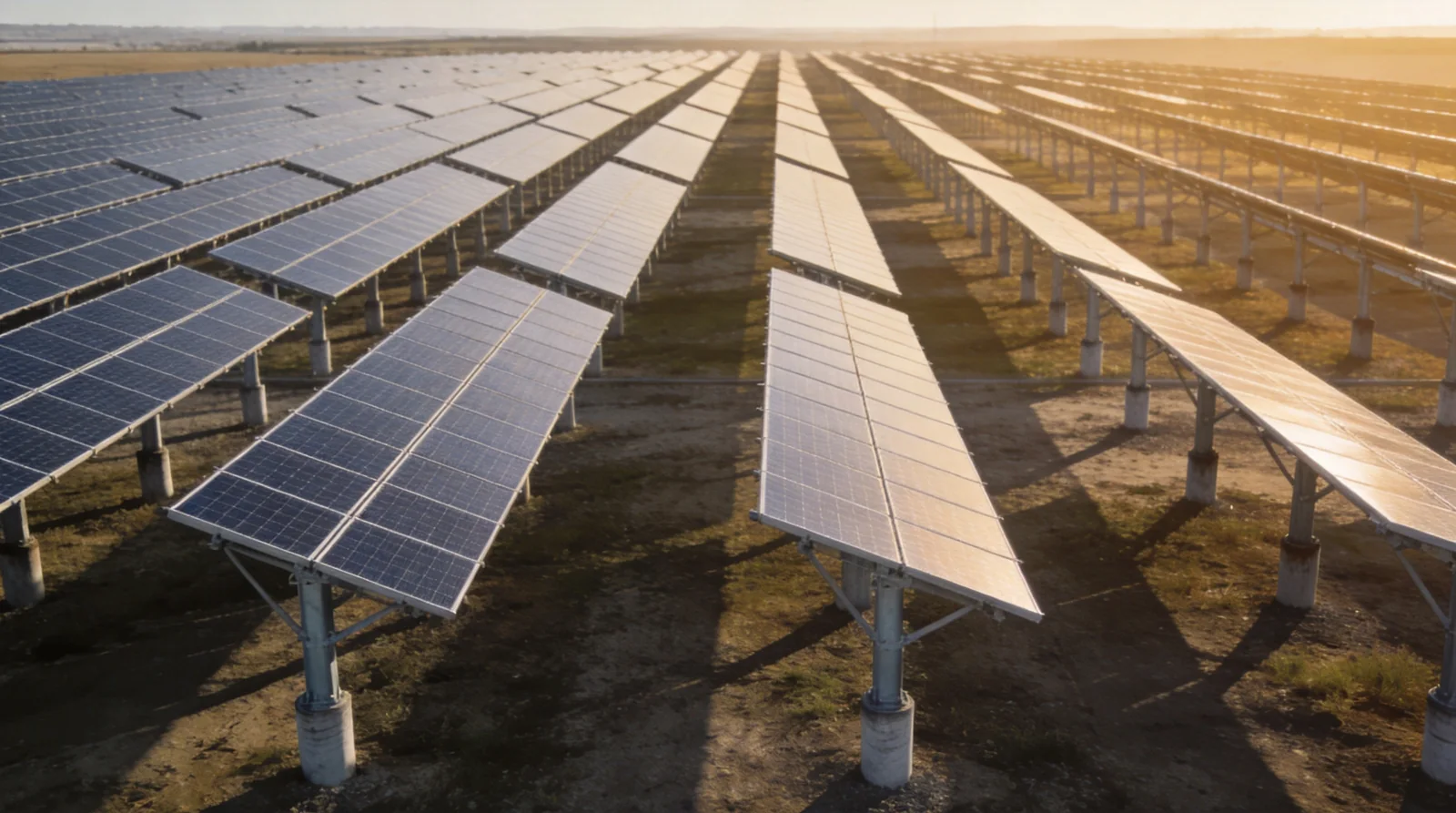

• Utility-Scale Solar Foundation Systems → — High-production-rate ground screw systems for single-axis tracker and fixed-tilt utility solar farms, with pre-production ASTM D1143/D3689 load testing support and 100% torque monitoring protocols

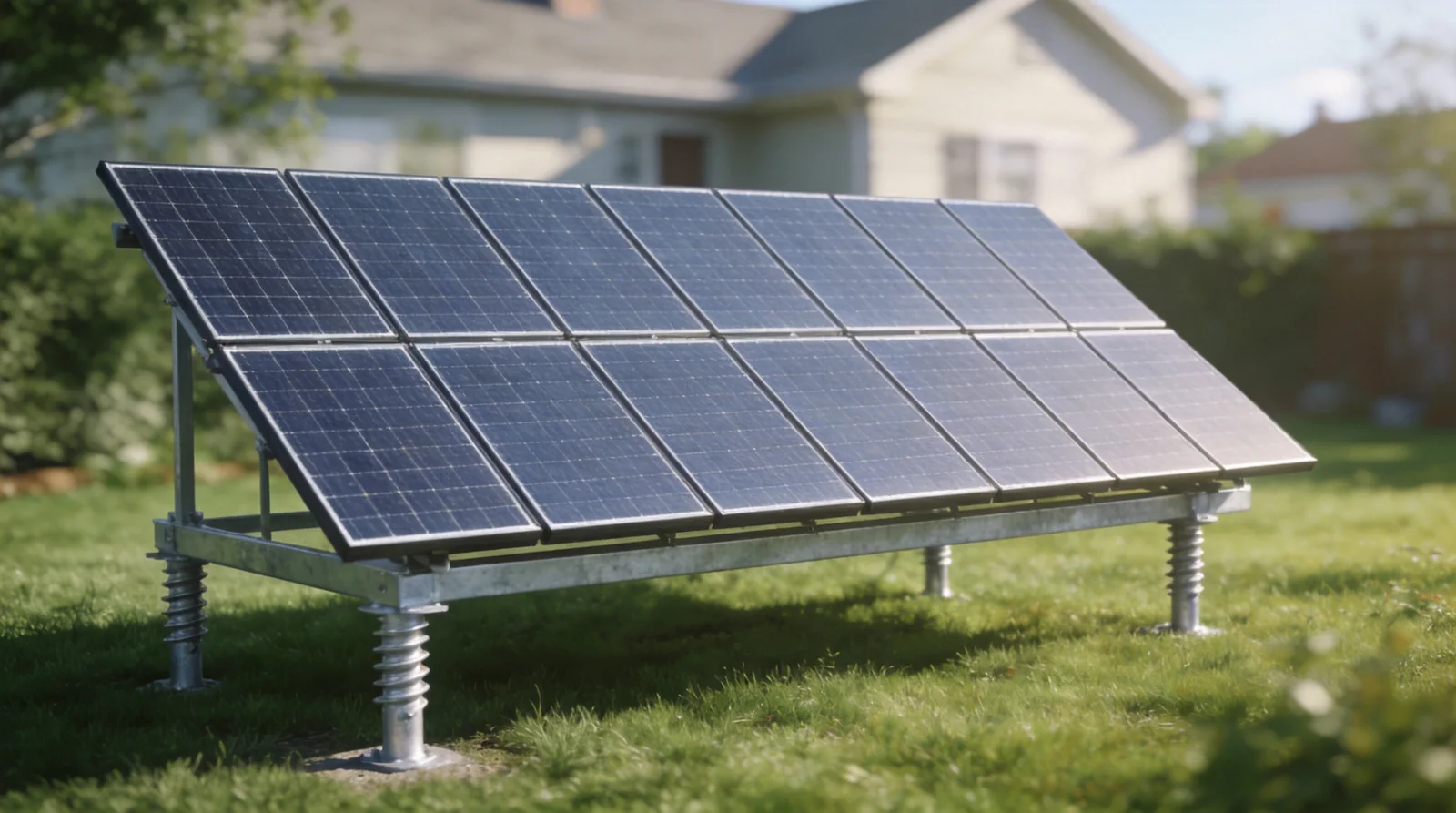

• Residential Solar Foundation Solutions → — Compact, hand-installable ground screw products for residential solar ground-mount and carport systems, with adjustable head heights for sloped terrain
• Fence Post Ground Screw Anchors → — Post socket ground screws for agricultural, security, and decorative fencing — fully removable and reusable, eliminating concrete post collar costs
• Deck Foundation Screw Systems → — Frost-stable deck foundation screws that penetrate below the frost depth, eliminating the seasonal frost heave that makes concrete pad footings structurally unreliable in freeze-thaw climates
• Greenhouse & Agricultural Foundation Systems → — Ground screw foundations for commercial greenhouse and polytunnel structures — compatible with standard frame column base details and installed without the concrete footings that impede seasonal soil cultivation operations

Engineered for Structural Performance

A ground screw foundation is not simply a product — it is a structural engineering calculation. The pile’s allowable load capacity is a calculated or load-tested value that depends on the steel grade’s yield strength (which determines the shaft’s torsional and bending capacity), the helical plate diameter and configuration (which determines the geotechnical bearing area), the installation depth and torque (which provides real-time field verification of the achieved capacity), and the soil profile at the site (which determines the Kt factor that converts installation torque to ultimate bearing resistance). Every one of these variables must be specified, verified, and documented for the structural engineer of record to sign off the foundation design — and every one of them is governed by an engineering standard that establishes the minimum acceptable value and the methodology for confirming compliance.

Solar Earth Screw products are designed within this full engineering framework. Our technical resources support the complete ground screw design workflow:

• Load design and structural verification — our Load Calculation Guide → explains how to derive design axial, uplift, and lateral loads from ASCE 7-22 or Eurocode 1, how to apply safety factors and partial factors under the applicable design code, and how to confirm that the selected pile section satisfies all governing load combinations simultaneously
• Soil conditions and pile selection — our Soil Conditions Guide → covers soil investigation methodology, SPT and CPT data interpretation, Kt factor selection by soil type, and pile length and helix configuration selection for standard to challenging soil profiles including loose sand, soft clay, fill, and variable mixed profiles
• Corrosion durability and service life — our Corrosion Durability Guide → explains how soil chemistry parameters (pH, resistivity, chloride, sulfate) govern zinc coating consumption rates, how to calculate the remaining zinc service life at the design embedment depth, and how to specify the correct enhanced coating for sites with aggressive soil chemistry

The CDP Excavating helical pile solar analysis confirms that by reading the torque exerted on the piles during installation, you can calculate their ultimate load capacity — and that thanks to the established empirical relationship between installation torque and load capacity, you have real-time quality control that ensures a successful result for every pile. This is the engineering advantage that makes ground screws the technically preferred foundation type for solar projects: the installation record is simultaneously the quality assurance record, providing structural traceability that no concrete foundation can match. For the complete technical reference library covering all aspects of ground screw foundation design, see our Technical Guide →

International Standards Compliance

Standards compliance is the technical foundation of project bankability for solar farm foundations. A ground screw that cannot demonstrate ISO 1461 galvanizing compliance, EN 10025 or ASTM steel grade certification, and load design calculations to the applicable structural code will not pass the independent engineer’s technical due diligence review that lenders require before financial close — regardless of its apparent structural adequacy. Solar Earth Screw products are manufactured and documented to the full set of international standards governing structural ground screw specification:

Each of these compliance domains is interdependent: the steel grade specification determines the pile’s structural load capacity, which must be verified against the load design standard; the corrosion category assessment determines the required galvanizing specification, which must meet the ISO 1461 coating thickness requirements; and all five domains must be simultaneously satisfied and documented before the foundation system can be certified as compliant for a permitted structural application. For the complete engineering compliance reference — covering all five domains in a single structured guide — see our Ground Screw & Solar Foundation Standards Hub →

The Nuance Energy helical foundation analysis confirms that helical foundations are highly durable and can often last over 100 years — but only when the galvanizing specification is correctly matched to the site’s soil corrosion category. Specifying the standard EN ISO 1461 minimum coating of 85 µm for a C4 coastal soil environment (which requires 115 µm local minimum) produces a foundation that will exhaust its zinc layer within 15–20 years of a 35-year solar project design life — confirming that standards compliance is a design-life financial issue, not merely a procurement formality.

Why Choose Ground Screws Over Traditional Foundations?

Ground screws consistently outperform concrete piers and driven steel piles across the dimensions that matter most for solar project delivery: installation speed, structural verification quality, environmental impact, and end-of-life reversibility. The American Ground Screw Products catalogue confirms that ground screws provide similar structural performance to concrete with 97.5% less embedded carbon — making ground screw specification a meaningful contribution to solar project sustainability reporting, in addition to the programme schedule and cost advantages.

• vs. Concrete piers — No curing delay, no excavation spoil, immediate load-bearing, frost-stable bearing from below frost depth, fully removable at end of life. A helical foundation can be installed and ready to use over 180% faster than poured concrete. For a detailed technical comparison covering structural capacity, installation logistics, lifecycle cost, and environmental impact, see our Ground Screw vs Concrete: Complete Engineering Comparison →
• vs. Driven steel piles — Ground screws provide simultaneous axial compression, uplift, and lateral resistance with a single installed element — no separate tension anchor required — and real-time capacity verification through torque monitoring that driven piles cannot provide. For a structural performance comparison across load types, installation methods, and site applicability, see our Ground Screw vs Driven Pile Analysis →
• Foundation selection for solar farms — For utility-scale solar projects, the foundation type selection is one of the highest-impact decisions in the project cost model. For a structured decision framework covering ground screws, concrete piers, driven piles, and ballasted systems across key evaluation criteria for solar farm applications, see our Best Foundation Type for Solar Farms →

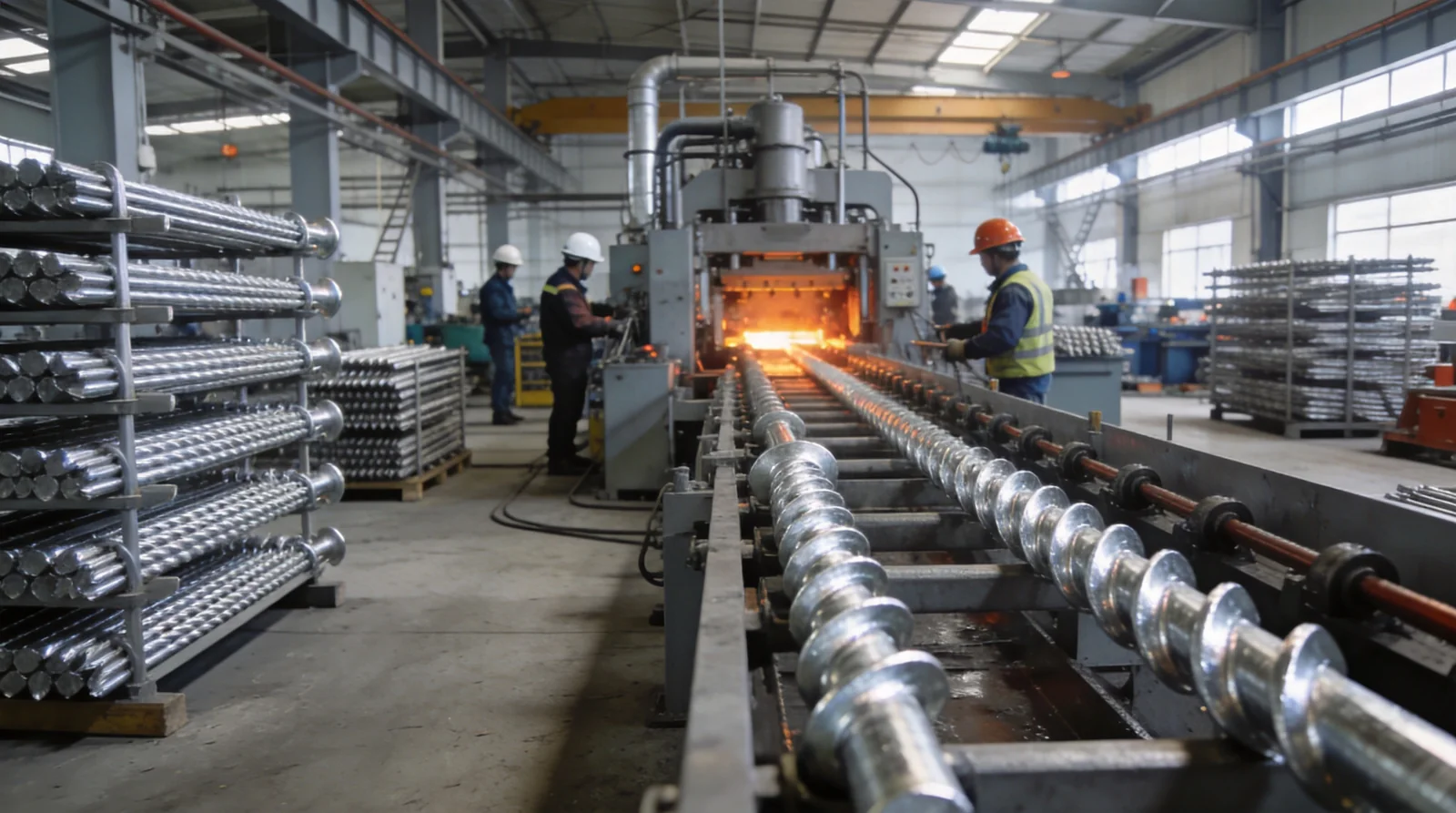

Manufacturing Excellence

Ground screw structural performance begins in the fabrication facility — not on the installation site. A pile manufactured from uncertified steel, with undersized helix plate welds, or with inadequate galvanizing bath control can appear visually identical to a fully compliant product while having meaningfully lower structural capacity and shorter corrosion protection service life than the engineer’s calculation assumed. Solar Earth Screw manufacturing is built around four non-negotiable quality disciplines:

• Incoming material control — every steel coil and tube arriving at our facility is verified against EN 10204 Type 3.1 mill test certificates before being released to production, confirming S355J2 mechanical properties and chemical composition including silicon content for galvanizing compatibility
• Fabrication dimensional control — shaft diameter, wall thickness, helix plate geometry, helix pitch, and coupling dimensions are verified against engineering drawings at defined inspection intervals throughout the production process, not only at final inspection
• Weld quality assurance — all structural welds (helix plate to shaft, coupling sleeve to shaft, pile head to shaft) are performed to qualified weld procedures per EN ISO 15614-1, with visual weld inspection to EN ISO 5817 Class B on 100% of production welds
• Galvanizing process control and batch testing — every production batch is tested per EN ISO 1461 with individual measurement results documented in the batch test report, confirming both mean and minimum local zinc thickness compliance at the critical measurement zones including weld recesses and helix plate undersides

The combination of these four disciplines produces a ground screw that can be traced from the steel mill through fabrication and galvanizing to the installed pile on site — providing the complete material and process audit trail that engineering sign-off, project finance, and building permit documentation require. For a full overview of our production facility, equipment capabilities, and quality management system, see our Factory Overview →

Global Applications — Solar, Construction, and Infrastructure

Solar Earth Screw foundation systems have been supplied to projects across Europe, North America, the Middle East, Southeast Asia, and Australia — spanning residential backyard solar installations of 10 panels to utility solar farms of 50+ MW, agricultural greenhouse complexes covering multiple hectares, perimeter fencing for industrial sites, and elevated deck structures for commercial hospitality facilities. The Sharesun PV analysis confirms that helical pile mounting systems are an excellent choice for most ground conditions, especially where speed, low environmental impact, and cost control are important — confirming that ground screws are the go-to foundation for utility-scale solar farms, commercial sites, and residential arrays globally. Our products support the full application spectrum:

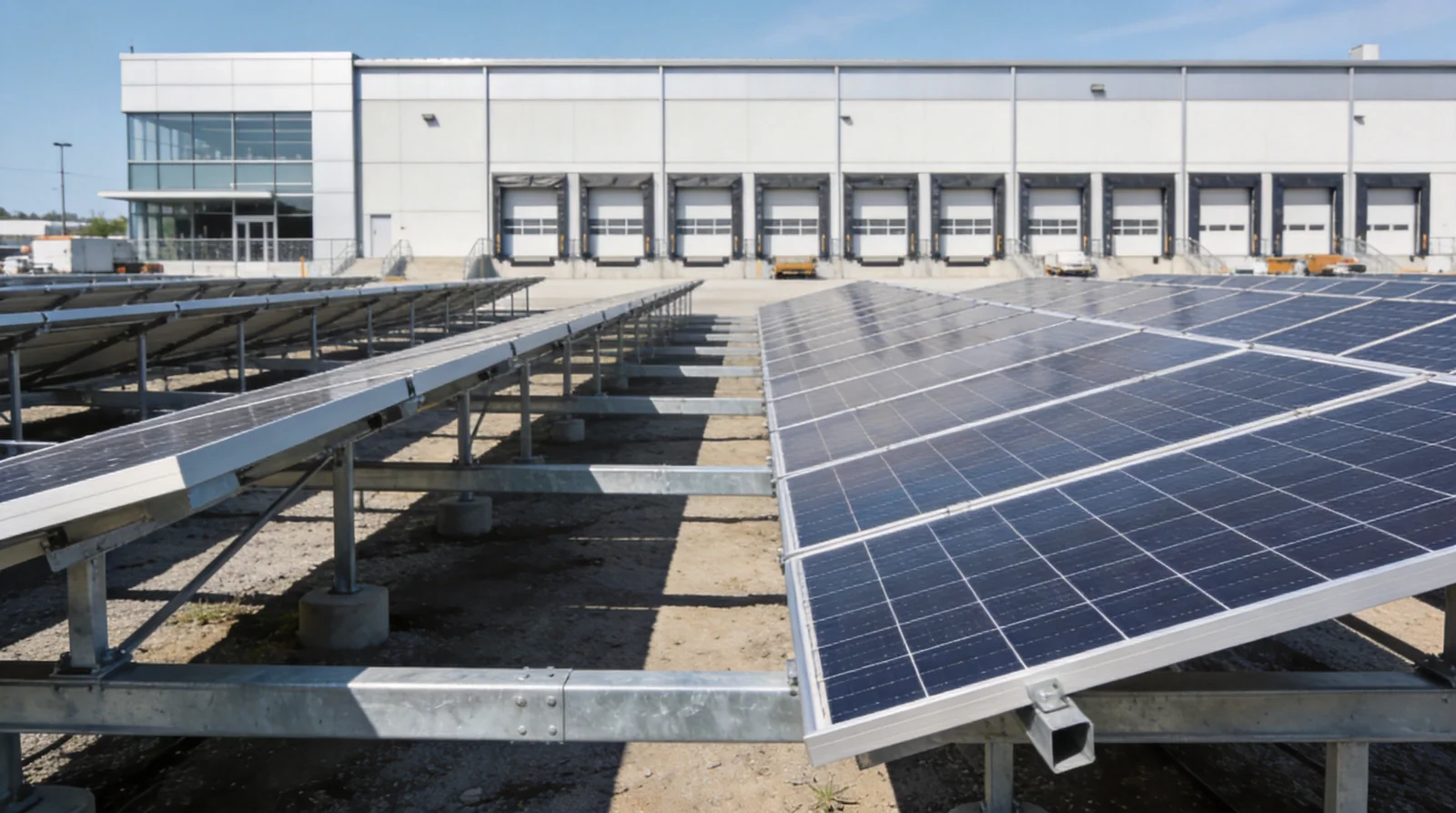

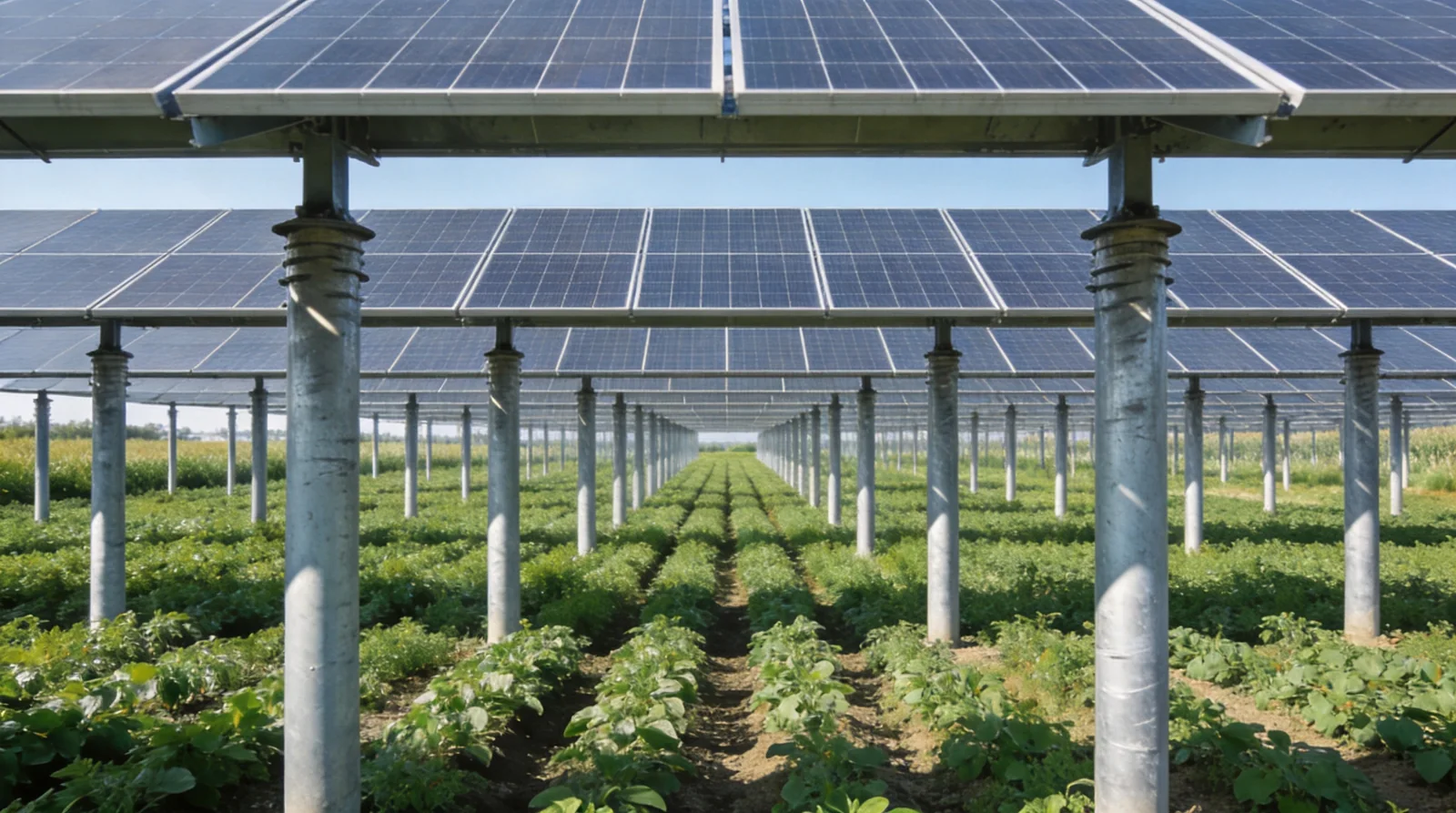

• Solar energy — residential ground-mount, commercial carport, utility fixed-tilt, utility single-axis tracker, agrivoltaic elevated arrays, floating solar shore anchors
• Civil and residential construction — deck foundations, patio anchors, retaining wall tiebacks, light pole bases, signage structures
• Agricultural infrastructure — greenhouse and polytunnel foundations, fruit cage support systems, agricultural fence lines, irrigation equipment anchors
• Temporary and relocatable structures — construction site fencing, temporary building foundations, event structures requiring rapid mobilisation and demobilisation

For the complete application library — with application-specific technical guides, structural design considerations, and product selection guidance for each use case — see our Applications Overview →

Start Your Foundation Project

Whether you are specifying foundations for a utility solar farm requiring a full engineering documentation package, selecting product for a commercial ground-mount installation, or determining the correct foundation type for a residential deck project, our technical team provides project-specific product selection, specification review, and compliance documentation support.

Provide us with your project location, soil investigation data, and structural load requirements — and we will confirm the recommended product specification, galvanizing grade for your site’s corrosion category, minimum installation torque criterion, and required load testing programme, typically within 2–5 business days.

Submit a Technical Enquiry →

For project finance submissions, EPC tender documentation, or independent engineer review packages, we supply complete compliance documentation including EN 10204 Type 3.1 mill test certificates, ISO 1461 galvanizing batch test reports, and structural calculation packages. Contact our technical team to discuss your documentation requirements →
